BALE CLAMP

Bale Clamp

Bale clamps can efficiently and economically handle nearly any type of bale product including cotton, wastepaper, chemical fiber, industrial scraps and so on, suitable for paper, textile, chemical fiber, wastepaper recycling, port and other industries of the no pallet handling and stacking operations.

Technical Specifications

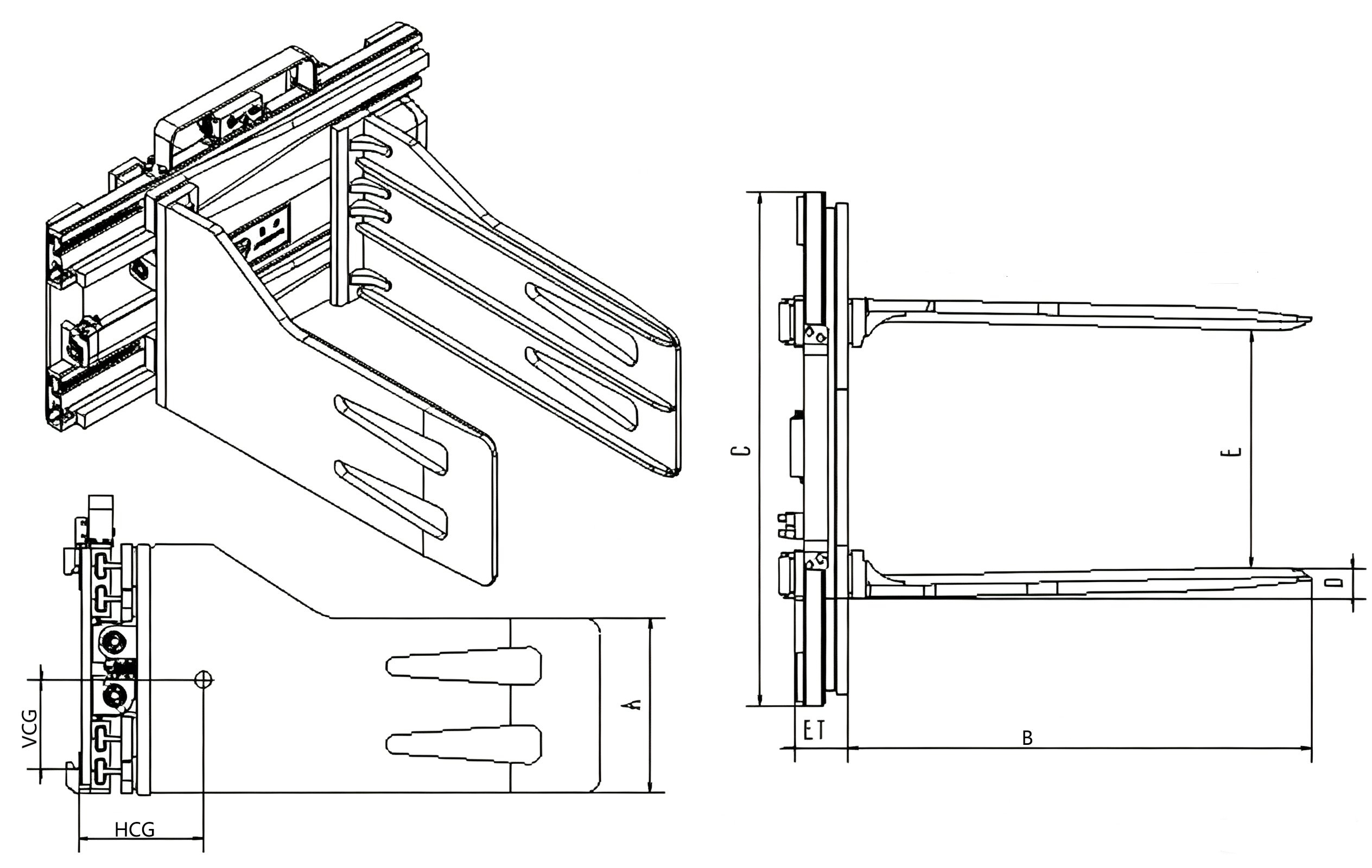

Model	Capacity@Load Center (kg@mm)	Opening Range (mm)	Mounting Class	Arm Height (A) (mm)	Arm Length (B) (mm)	Arm Thickness (D) (mm)	Frame Width (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (kg)
SLR-A01CBC	1900@500	450-1730	2	450	1200	76	1100	232	332	133	563
SLR-A02CBC	1900@500	450-1950	2	450	1200	76	1150	230	312	133	600
SLR-A03CBC	1900@500	470-1790	2	450	1200	76	1300	286	321	133	588
SLR-A04CBC	1900@500	550-1900	2	450	1200	76	1000	238	265	133	526
SLR-A05CBC	1900@500	500-2300	2	450	1200	76	1600	282	287	133	653
SLR-A06CBC	1900@500	600-2200	2	450	1200	76	1300	258	316	133	601
SLR-A07CBC	1900@500	600-2400	2	450	1200	63	1600	254	349	133	688
SLR-B01CBC	2200@500	300-1600	3	450	1200	76	1100	230	333	133	560
SLR-B02CBC	2200@500	400-1770	3	450	1200	76	1300	230	315	133	583
SLR-B03CBC	2200@500	450-1730	3	450	1200	76	1100	229	332	133	565
SLR-B04CBC	2200@500	450-1900	3	450	1200	76	1400	230	310	133	594
SLR-B05CBC	2200@500	450-2300	3	450	1200	76	1700	232	302	133	633
SLR-B06CBC	2200@500	460-1690	3	450	1200	76	1100	226	349	133	649
SLR-B07CBC	2200@500	520-2120	3	450	1200	76	1400	233	351	133	658
SLR-B08CBC	2200@500	550-1900	3	450	1200	76	1100	229	328	133	575
SLR-B09CBC	2200@500	600-2200	3	450	1200	76	1300	230	313	133	608
SLR-B10CBC	2200@500	600-2300	3	450	1200	76	1400	231	309	133	617
SLR-B11CBC	2200@500	630-2430	3	450	1200	76	1600	231	302	133	635
SLR-B12CBC	2200@500	700-2300	3	450	1200	76	1400	231	301	133	619
SLR-B13CBC	2200@500	700-2400	3	450	1200	76	1400	228	345	133	651
SLR-A01EBC	2200@500	550-1900	2	450	1200	86	1100	235	309	140	666
SLR-B01EBC	2700@500	200-2050	3	450	1200	86	1900	226	277	140	748
SLR-B02EBC	2700@500	250-1600	3	450	1200	86	1300	231	323	140	692
SLR-B03EBC	2700@500	450-2050	3	450	1200	86	1400	235	288	140	735
SLR-B04EBC	2700@500	500-1800	3	450	1200	86	1100	231	328	140	683
SLR-B05EBC	2700@500	500-2300	3	450	1200	86	1600	235	284	140	756
SLR-B06EBC	2700@500	550-1900	3	450	1200	86	1100	232	308	140	667
SLR-B07EBC	2700@500	550-2150	3	450	1370	86	1260	230	344	140	767
SLR-B08EBC	2700@500	550-2250	3	450	1200	86	1400	232	327	140	774
SLR-B09EBC	2700@500	600-2200	3	450	1200	86	1300	235	289	140	723
SLR-B10EBC	2700@500	600-2300	3	450	1200	86	1300	235	288	140	730
SLR-B11EBC	2700@500	600-2300	3	450	1200	86	1400	235	285	140	735
SLR-B12EBC	2700@500	600-2400	3	450	1200	86	1600	235	283	140	747
SLR-B13EBC	2700@500	700-2300	3	450	1200	86	1220	235	292	140	714
SLR-B14EBC	2700@500	700-2400	3	450	1200	86	1400	235	285	140	735
SLR-B15EBC	2700@500	700-2500	3	450	1200	86	1600	235	283	140	736
SLR-B31EBC	3200@600	490-2300	3	450	1600	85	1600	253	415	162	1258
SLR-B32EBC	3200@600	600-2200	3	450	1200	85	1300	274	305	162	1036
SLR-B33EBC	3200@600	700-2300	3	450	1200	85	1400	261	302	162	1072
SLR-B34EBC	3200@600	700-2300	3	450	1300	85	1400	259	323	162	1095
SLR-B35EBC	3200@600	700-2600	3	450	1200	85	1700	279	273	162	1107
SLR-B36EBC	3200@600	540-2140	4	460	1520	85	1300	267	406	162	1172
SLR-B37EBC	3200@600	600-2200	4	1500	1100	85	1300	547	428	162	1673
