PAPER ROLL CLAMP

Paper Roll Clamp

Handling paper roll efficiently and safely and clamping roll to 360 degree rotate continuously. It is widely used in paper making, printing, packing, carton and for stacking and carrying without a tray.

Technical Specifications

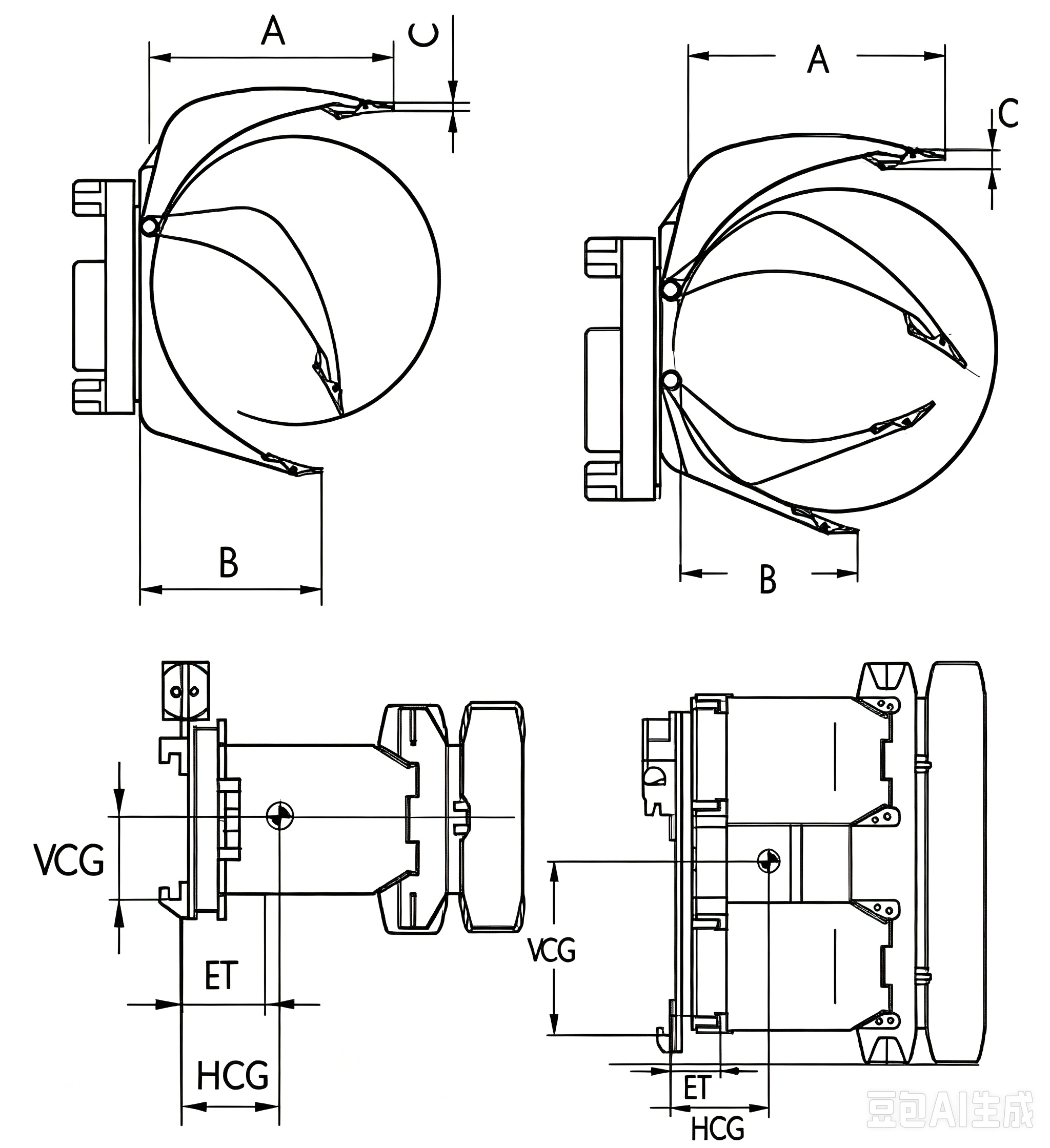

Model	Capacity	Mounting Class	Opening Range (mm)	Long Arm Length A (mm)	Short Arm Length B (mm)	Arm Thickness C (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (Kg)
SLZZ-A101	1300	2	330-1150	685	515	45	330	216	138	345
SLZZ-A102	1200	2	410-1300	790	580	45	330	222	138	358
SLZZ-A/B204	2000	2/3	250-1300	824	570	45	345	295/330	210/250	730/748
SLZZ-A/B205	2000	2/3	630-1300	824	570	45	345	295/330	210/250	720/738
SLZZ-A/B206	2000	2/3	350-1600	956	774	90	345	310/320	210/250	838/848
SLZZ-A/B207	2000	2/3	630-1600	956	774	90	345	308/318	210/250	826/836
SLZZ-B208	1700	3	680-1830	1130	930	112	445	458	210/250	950
SLZZ-B209	1700	3	380-1830	1130	930	112	445	460	210/250	965
SLZZ-B/C310	2700	3/4	520-1300	850	590	85	445	270/290	210/250	820/840
SLZZ-B/C311	2700	3/4	250-1300	850	590	85	445	270/290	210/250	835/855
SLZZ-B/C312	2700	3/4	560-1520	970	690	70	445	305/322	210/250	880/900
SLZZ-B/C313	2700	3/4	255-1520	970	690	70	445	305/322	210/250	898/918
SLZZ-B/C314	2300	3/4	680-1830	1125	825	88	450	352/372	210/250	995/1016
SLZZ-B/C315	2300	3/4	380-1830	1125	825	88	450	352/372	210/250	1018/1040
SLZZ-24H01	2200	3	200-1400	964	626	102	344	335	241	680
SLZZ-24H02	2200	3	550-1400	964	626	102	344	335	241	675
SLZZ-24H03	2200	3	200-1600	1045	722	98	345	352	241	725
SLZZ-24H04	2200	3	500-1600	1045	722	98	345	352	241	719
SLZZ-24H05	2200	3	200-1830	1219	808	116	345	388	234	788
SLZZ-24H06	2200	3	550-1830	1219	808	116	345	388	234	782
