JINGJIANG RUIYI IMPORT AND EXPORT CO.,LTD.
DRUM CLAMP
1600 KGDrum Clamp (Rotating)
Drum clamp can handle one, two or four oil barrels at the same time, to ensure safe and reliable transport of goods improve handling efficient. It is widely used in bottled goods handling, such as oil, petrochemical and food industry.
Load Capacity1600 KG
Suitable Forklift2~3.5 TON
Attachment Weight602 KG
Dimensions / Opening460-1960 MM

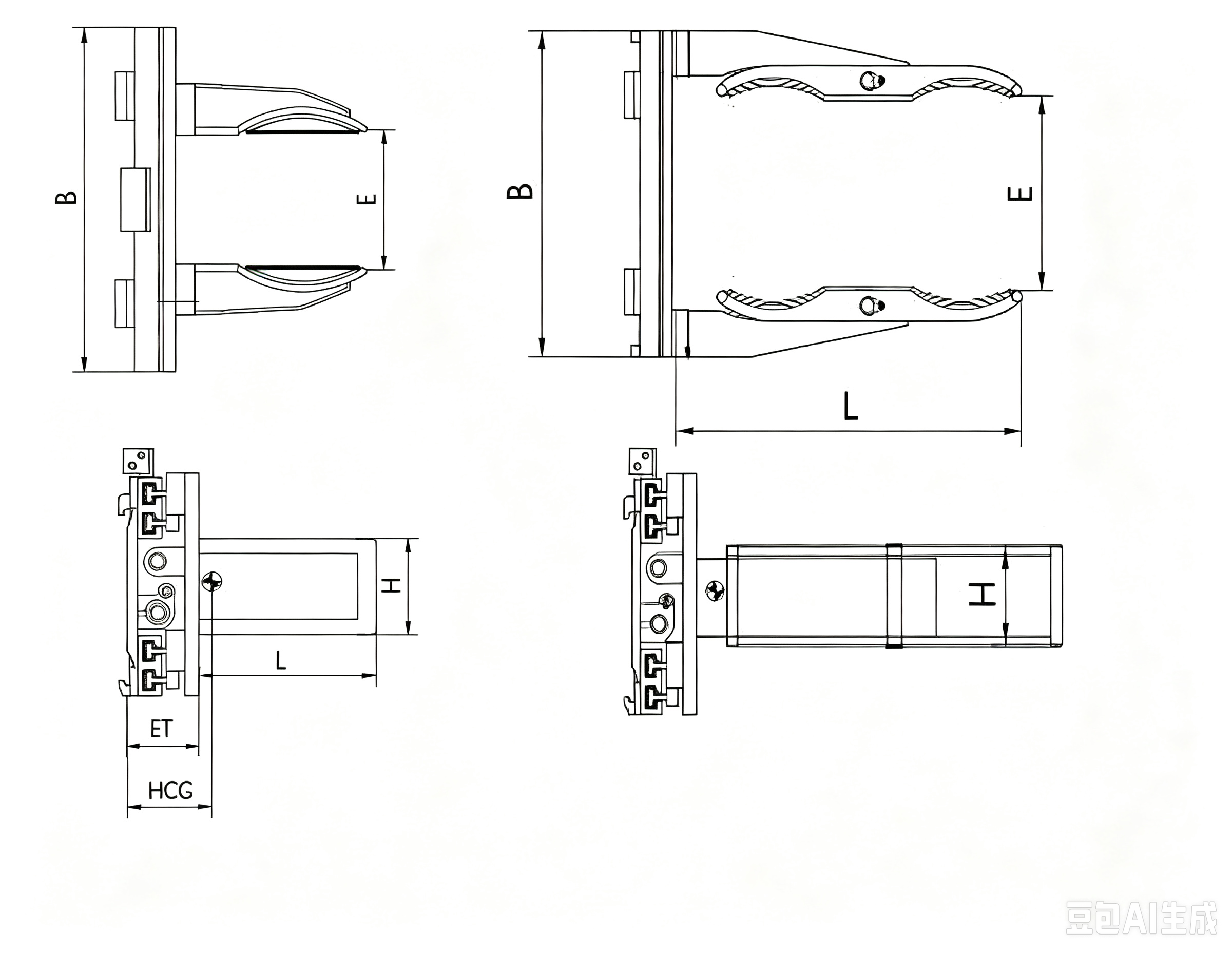

Technical Specifications
| Model | Capacity@Load Center (kg@mm) | Opening Range (mm) | Mounting Class | Frame Width (mm) | VCG (mm) | HCG (mm) | ET (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SLR-A502DR | 1900@500 | 520-1750 | 2 | 940 | 410 | 115 | 240 | 530 |
| SLR-A504DR | 1900@500 | 460-1690 | 2 | 940 | 410 | 275 | 242 | 602 |
