BLOCK CLAMP

Block Clamp

Block clamp can handle efficiently various types of solid, regular cubic goods. Widely used in construction material, metallurgy industries for handling concrete blocks, cement bricks carbon cubes etc.

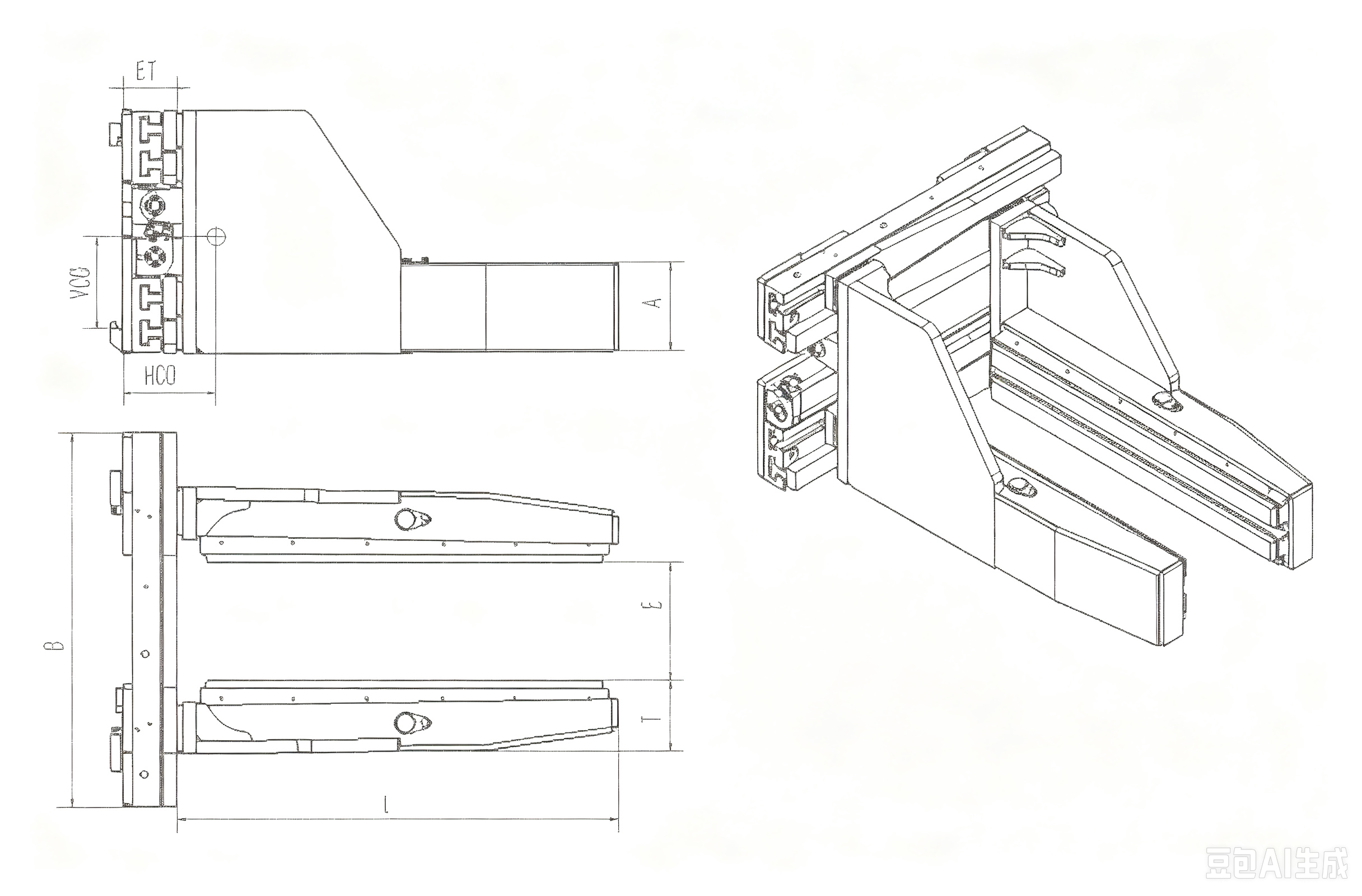

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Opening Range (mm)	Mounting Class	Arm Height (A) (mm)	Arm Length (B) (mm)	Arm Thickness (D) (mm)	Frame Width (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (kg)
SLR-A01ZKL	1600@500	330-1650	2	240	1100	190	1015	218	216	152	740
SLR-A02ZKL	1600@500	330-1650	2	240	1200	190	1015	218	240	152	765
SLR-A03ZKL	1600@500	330-1650	2	240	1300	190	1015	218	256	152	795
SLR-A04ZKL	1600@500	330-1650	2	240	1400	190	1015	218	270	152	825
SLR-B01ZKL	2300@500	330-1650	3	240	1100	186	1015	178	376	140	710
SLR-B02ZKL	2300@500	330-1650	3	240	1200	190	1015	176	408	140	735
SLR-B03ZKL	2300@500	330-1650	3	240	1300	190	1015	174	446	140	767
SLR-B04ZKL	2300@500	330-1650	3	240	1400	190	1015	172	483	140	800
SLR-B05ZKL	2700@500	400-1900	3	240	1100	190	1015	191	370	145	785
SLR-B06ZKL	2700@500	400-1900	3	240	1200	190	1015	187	402	145	810
SLR-B07ZKL	2700@500	400-1900	3	240	1300	190	1015	184	440	145	842
SLR-B08ZKL	2700@500	400-1900	3	240	1400	190	1015	181	477	145	875
SLR-B09ZKT	2300@500	290-1610	3	310	1210	195	1300	195	392	133	765
SLR-B10ZKT	2300@500	330-1650	3	310	1200	195	1300	195	392	133	765
SLR-B11ZKT	2700@500	330-1650	3	240	1200	200	1100	185	386	140	825
SLR-B12ZKT	2700@500	330-1650	3	310	1200	205	1100	205	387	140	822
