CARTON CLAMP

Carton Clamp

Carton clamps can safe and efficiently handle all kinds of carton packaging, Apply to tobacco, household electrical appliances and other industries of no pallet handling and stacking operations.

Technical Specifications

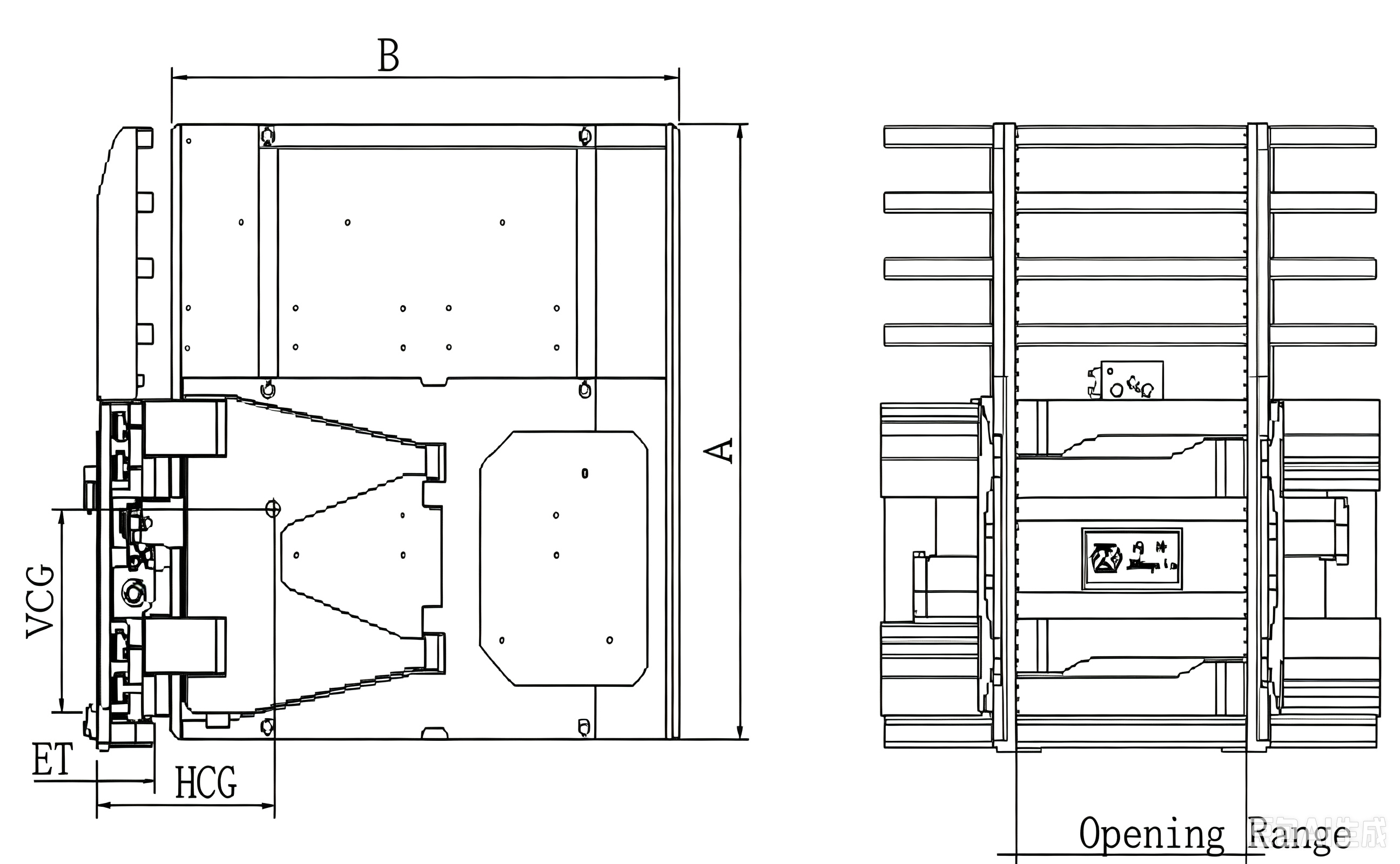

Model	Capacity@Load Center (kg@mm)	Mounting Class	Opening Range (mm)	Arm Height A (mm)	Arm Length B (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (kg)
SLR-A01CC	1200@500	2	560-1930	1220	1070	326	420	132	640
SLR-A02CC	1200@500	2	580-2200	1220	1320	398	496	132	775
SLR-A03CC	1200@500	2	600-2350	1200	1320	391	470	132	785
SLR-A04CC	1200@500	2	600-2200	1220	1420	379	526	132	846
SLR-A05CC	1600@535	2	560-1930	1220	1070	375	385	132	690
SLR-A06CC	1600@585	2	560-1930	1220	1170	326	428	132	725
SLR-A07CC	1600@610	2	560-1930	1220	1220	391	453	132	743
SLR-A08CC	1600@660	2	560-1930	1220	1320	401	475	132	750
SLR-A09CC	1600@710	2	560-1930	1220	1420	412	485	132	762
SLR-A10CC	1600@610	-	560-1930	1320	1220	380	455	132	728
SLR-A11CC	1600@660	-	560-1930	1320	1320	395	475	132	785
SLR-A12CC	1600@610	2	560-1930	1220	1220	407	419	138	836
SLR-A13CC	1600@610	2	500-2100	1320	1220	410	444	133	880
SLR-A14CC	1600@535	2	560-1930	1220	1070	383	385	136	690
SLR-B20CC	2300@610	3	540-1850	1220	1220	420	465	145	795
SLR-B21CC	2300@660	3	540-1850	1220	1320	420	475	145	850
SLR-B22CC	2300@710	3	540-1850	1220	1420	403	529	145	942
SLR-B23CC	2300@610	3	540-1850	1320	1220	420	475	145	852
SLR-B24CC	2300@660	3	540-1850	1320	1320	420	485	145	908
SLR-B25CC	2300@610	3	550-1950	1220	1220	406	431	145	858
SLR-B26CC	1600@610	3	560-1930	1220	1220	394	447	132	748
SLR-B27CC	1600@710	3	560-1930	1220	1420	410	545	150	910
SLR-A15CC8	1600@535	2	530-1930	1220	1420	464	535	133	983
SLR-A16CC8	1600@535	2	530-2030	1220	1320	442	492	133	958
