FORK POSITIONER

Fork Positioner

Fork positioner adjusts the distance between forks through the hydraulic drive, reduces the labor intensity and improves efficient suitable for different specifications tray handling occasion.

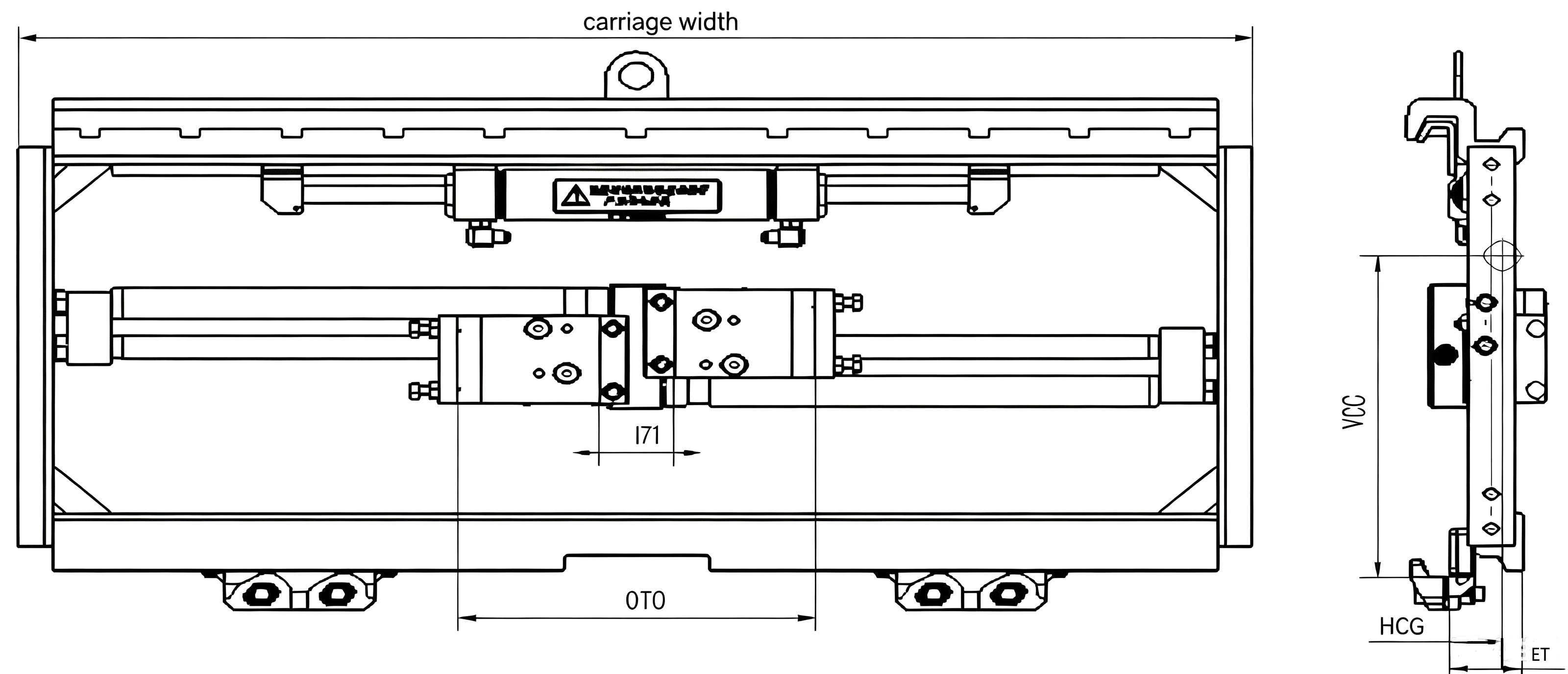

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Mounting Class	Carriage Width (mm)	Opening Range (mm)	Side Shift S (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (Kg)
SLC-ZA211	2500@500	2	920	68~820	±100	229	29	63	70
SLC-ZA212	2500@500	2	970	68~870	±100	229	29	63	72
SLC-ZA213	2500@500	2	1000	68~900	±100	229	29	63	73
SLC-ZA214	2500@500	2	1020	68~920	±100	229	29	63	74
SLC-ZA215	2500@500	2	1040	68~940	±100	229	29	63	75
SLC-ZA216	2500@500	2	1100	68~1000	±100	229	29	63	77
SLC-ZB311	3500@600	3	920	68~820	±100	298	28	65	85
SLC-ZB312	3500@600	3	970	68~870	±100	298	28	65	86
SLC-ZB313	3500@600	3	1000	68~900	±100	298	28	65	87
SLC-ZB314	3500@600	3	1020	68~920	±100	298	28	65	88
SLC-ZB315	3500@600	3	1040	68~940	±100	298	28	65	89
SLC-ZB316	3500@600	3	1100	68~1000	±100	298	28	65	92
SLC-ZB317	3500@600	3	1150	68~1050	±100	297	28	65	94
SLC-ZB318	3500@600	3	1200	68~1100	±100	296	28	65	96
SLC-ZB319	3500@600	3	1250	68~1150	±100	295	28	65	98
SLC-ZB320	3500@600	3	1300	68~1200	±100	294	28	65	100
SLC-ZB411	4500@600	3	1100	100-990	±100	313	37	79	160
SLC-ZB412	4500@600	3	1150	100-1040	±100	313	37	79	164
SLC-ZB413	4500@600	3	1200	100-1090	±100	314	37	79	169
SLC-ZB414	4500@600	3	1250	100~1140	±100	314	37	79	174
SLC-ZB415	4500@600	3	1300	100~1190	±100	312	37	79	179
SLC-ZB416	4500@600	3	1380	100~1270	±100	310	38	79	183
SLC-ZB417	4500@600	3	1500	100~1390	±100	310	39	79	191
SLC-ZB418	4500@600	3	1600	100~1490	±100	310	39	79	200
