SIDE SHIFTER

D-Series

Side shifter adjusts a load from side to side for reduced handling time and improved maneuverability, is suitable for various forklift handling and stacking occasion.

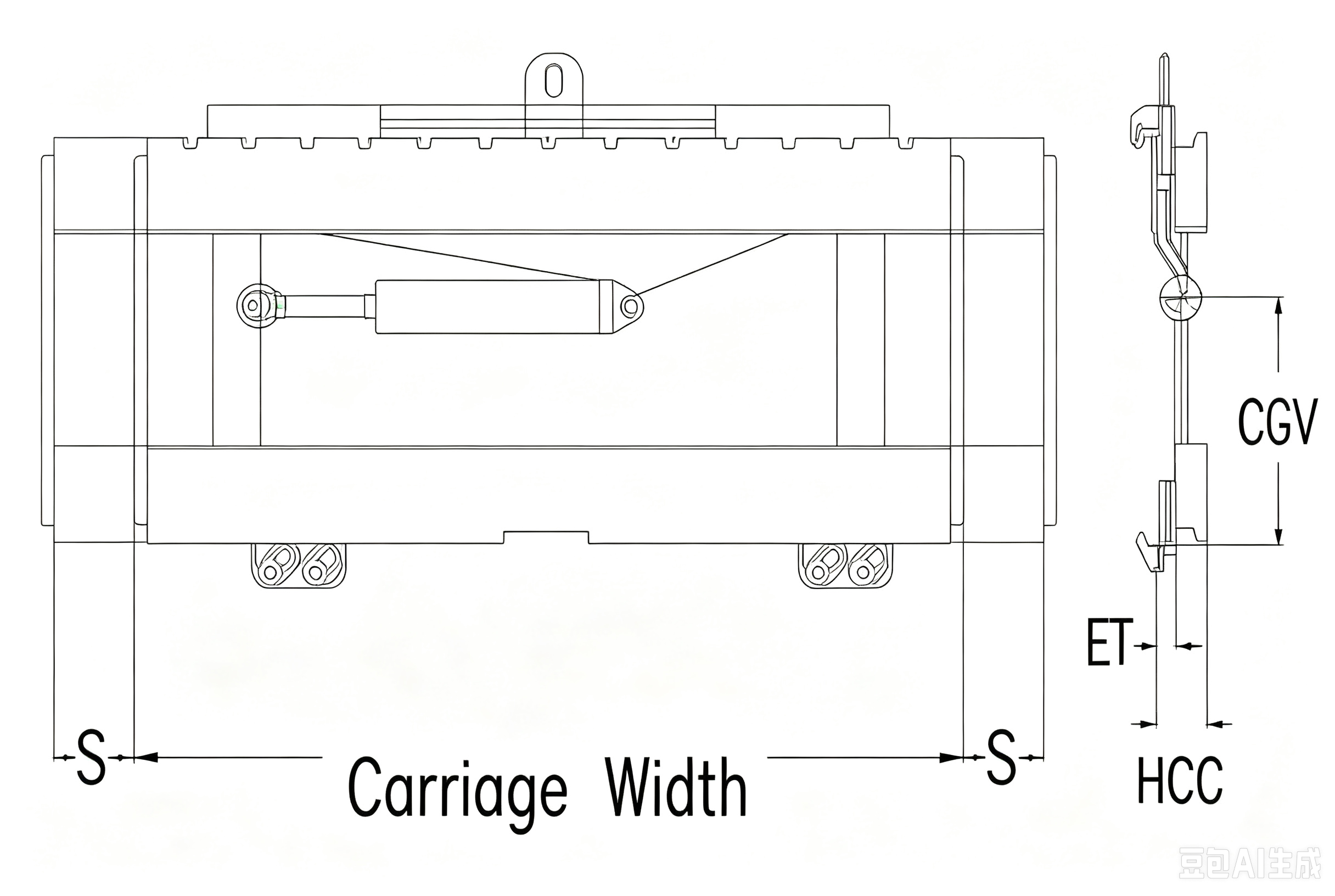

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Mounting Class	Side Shift S (mm)	Carriage Width A (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (Kg)
SLC-B21	4500@600	3	±100	1100	295	36	79	130.8
SLC-B22	4500@600	3	±100	1150	304	35	79	140
SLC-B23	4500@600	3	±100	1170	303	35.5	79	141.2
SLC-B24	4500@600	3	±100	1260	301	36	79	148
SLC-B25	4500@5600	3	±100	1380	299	37	79	154
SLC-B26	4500@600	3	±100	1450	298	41	79	158.5
SLC-B27	4500@600	3	±100	1500	317	41	79	165
SLC-B28	4500@600	3	±100	1650	313	42	79	173
SLC-B29	4500@600	3	±100	1800	311	41	79	192.3
SLC-B30	4500@600	3	±100	1900	311	42	79	203
SLC-B31	4500@600	3	±100	2000	305	43	79	214
SLC-B32	4500@600	3	±100	2100	302	39	79	222.5
SLC-C01	6800@600	4	±100	1190	370	46	88	220
SLC-C02	6800@600	4	±100	1250	368	46	88	225
SLC-C03	6800@600	4	±100	1310	368	47	88	229
SLC-C04	6800@600	4	±100	1380	369	46	88	240
SLC-C05	6800@600	4	±150	1535	369	46	88	265
SLC-C06	6800@600	4	±150	1700	365	47	88	282
SLC-C07	6800@600	4	±150	1845	358	48	88	303
SLC-C08	6800@600	4	±150	1900	365	48	88	308
SLC-D01	9500@600	5	±150	1845	427	61	114	519
SLC-D02	9500@600	5	±150	2010	434	61	114	587
SLC-D03	9500@600	5	±150	2060	432	61	114	595
SLC-D04	9500@600	5	±150	2100	432	61	114	606
SLC-D05	9500@600	5	±150	2200	436	61	114	637
