SIDE SHIFTER

F-Series

Side shifter adjusts a load from side to side for reduced handling time and improved maneuverability, is suitable for various forklift handling and stacking occasion.

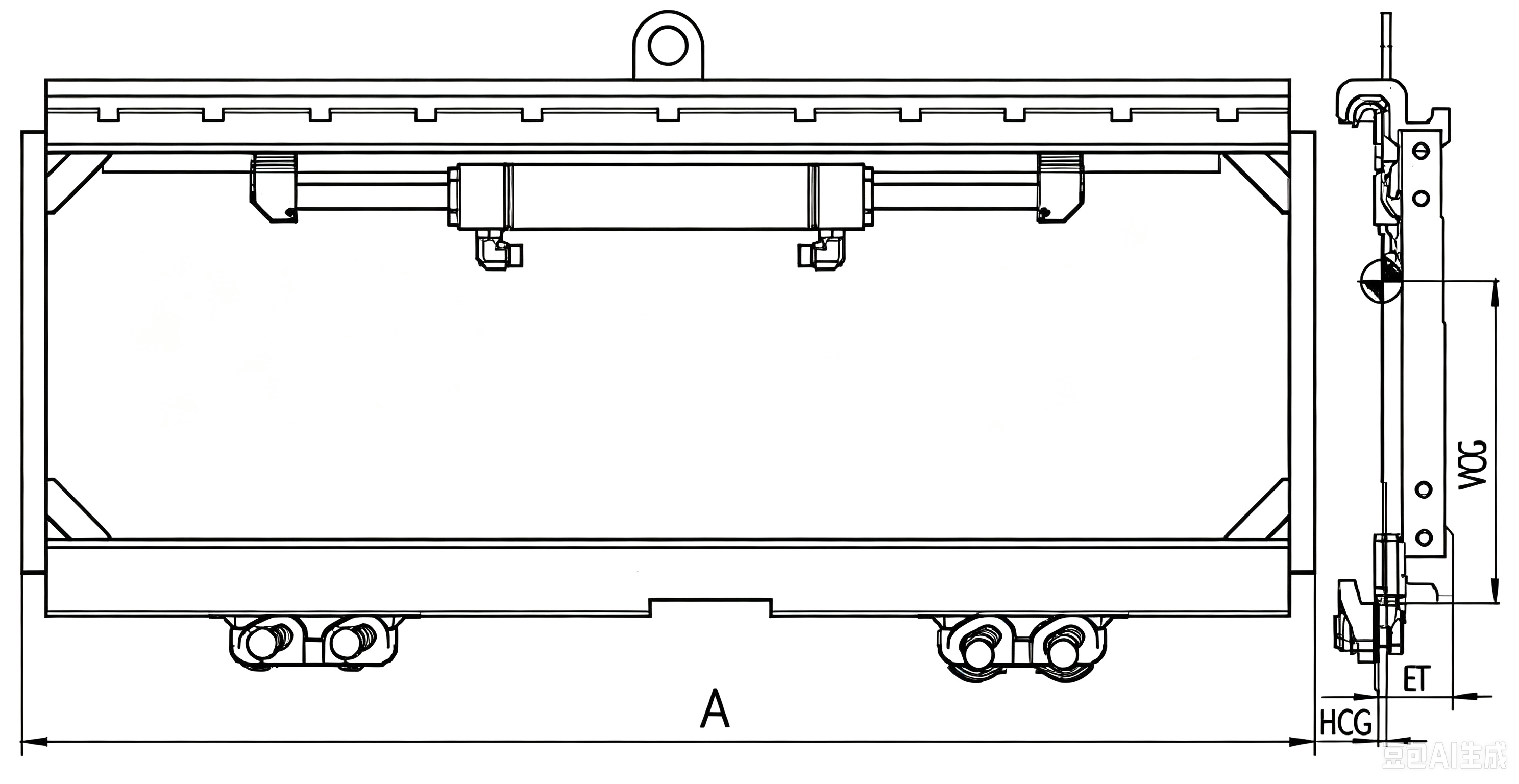

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Mounting Class	Side Shift S (mm)	Carriage Width A (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (Kg)
SLC-SA01	2500@500	2	±100	800	232	28	63	47
SLC-SA02	2500@500	2	±100	900	237	29	63	51
SLC-SA03	2500@500	2	±100	920	237	29	63	52
SLC-SA04	2500@500	2	±100	940	237	29	63	52.7
SLC-SA05	2500@500	2	±100	970	237	29	63	53.7
SLC-SA06	2500@500	2	±100	980	237	29	63	54
SLC-SA07	2500@500	2	±100	1000	237	29	63	54.6
SLC-SA08	2500@500	2	±100	1020	237	29	63	55.3
SLC-SA09	2500@500	2	±100	1040	237	29	63	56.1
SLC-SA10	2500@500	2	±100	1100	238	29	63	58.2
SLC-SA11	2500@500	2	±100	1150	238	29	63	59.8
SLC-SA12	2500@500	2	±100	1200	238	29	63	61.5
SLC-SB01	3500@600	3	±100	970	310	26	65	66.8
SLC-SB02	3500@600	3	±100	980	310	26	65	67.4
SLC-SB03	3500@600	3	±100	1000	310	26	65	68.5
SLC-SB04	3500@600	3	±100	1020	310	26	65	69.4
SLC-SB05	3500@600	3	±100	1040	310	26	65	70
SLC-SB06	3500@600	3	±100	1070	310	26	65	71.7
SLC-SB07	3500@600	3	±100	1100	310	26	65	72.5
SLC-SB08	3500@600	3	±100	1150	312	26	65	75.3
SLC-SB09	3500@600	3	±100	1200	312	26	65	77.6
SLC-SB10	3500@600	3	±100	1250	312	26	65	79.9
SLC-SB11	3500@600	3	±100	1300	313	26	65	82.2
SLC-SB12	3500@600	3	±100	1350	313	26	65	84.5
