HINGED BROKEN HANDLER
1600~2700 KGHinged Broken Handler
Hinged broke handlers is widely used no-packaged cargo, such as wastepaper, cotton, hay, rag, industrial scrap, etc.
Load Capacity1600~2700 KG
Suitable Forklift2~3.5 TON
Attachment Weight850~1150 KG
Dimensions / Opening-10~1850 MM

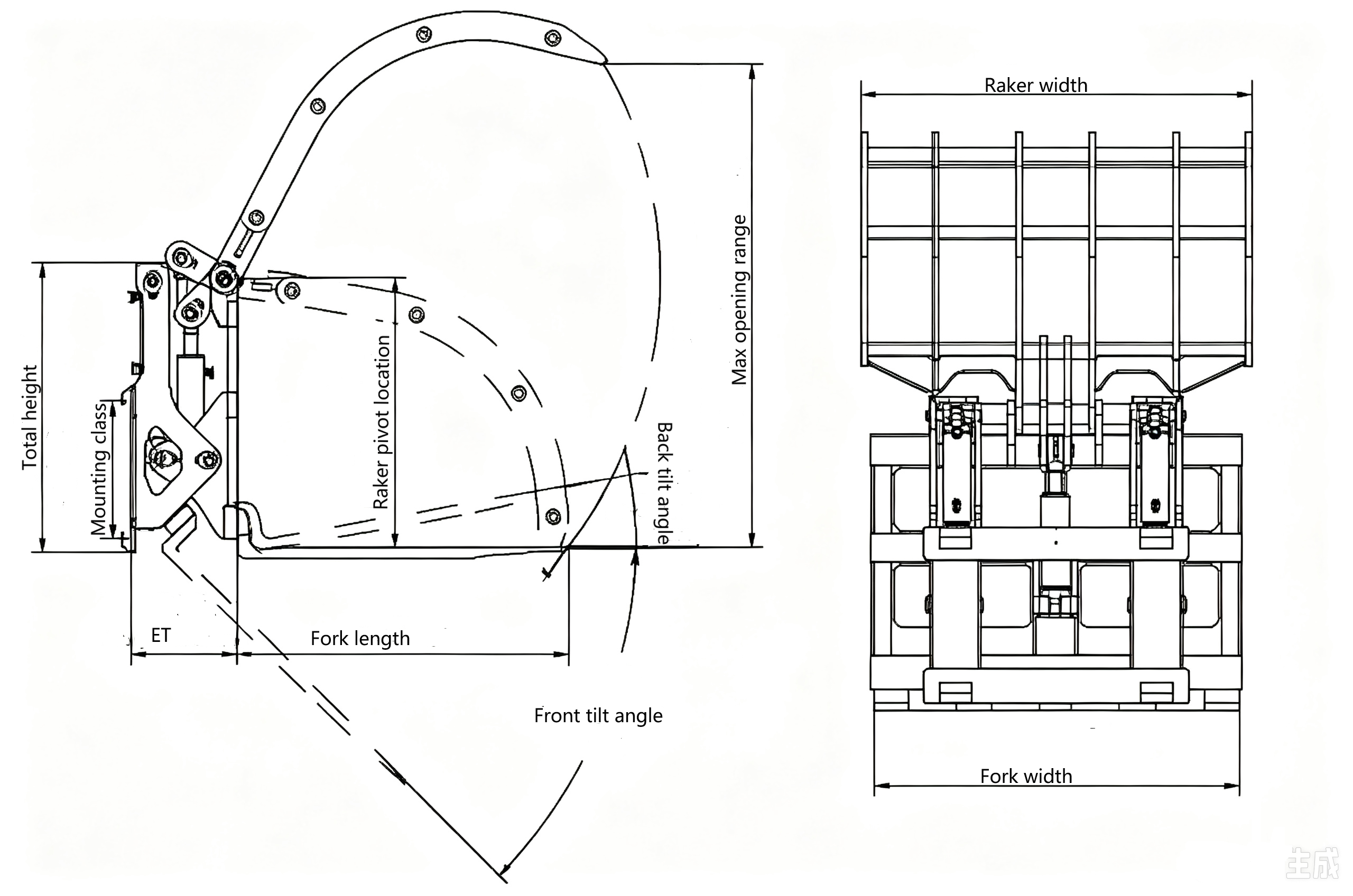

Technical Specifications
| Model | Capacity@Load Center (kg@mm) | Mounting Class | Raker Pivot Location (mm) | Fork Length (mm) | Fork Width (mm) | Total Height (mm) | Fork Number | Raker Number | Tilt Forward/Backward | HCG (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLF-A01HB | 1600@500 | 2 | 775 | 1220 | 940 | 970 | 4 | 5 | 45°/10° | 552 | 765 |
| SLF-A02HB | 1600@500 | 2 | 782 | 1220 | 1270 | 903 | 5 | 6 | 45°/10° | 593 | 790 |
| SLF-B01HB | 2500@500 | 3 | 800 | 1220 | 980 | 1080 | 5 | 6 | 45°/10° | 578 | 868 |
| SLF-B02HB | 2500@500 | 3 | 900 | 970 | 1000 | 1104 | 4 | 5 | 45°/10° | 471 | 820 |
| SLF-B03HB | 2500@500 | 3 | 840 | 1220 | 1038 | 1080 | 5 | 6 | 45°/10° | 562 | 850 |
| SLF-B04HB | 2500@500 | 3 | 1000 | 1200 | 1270 | 1080 | 6 | 5 | 45°/10° | 370 | 1010 |
| SLF-B05HB | 2500@500 | 3 | 1000 | 1200 | 1270 | 1080 | 6 | 5 | 45°/10° | 370 | 1055 |
| SLF-B06HB | 2500@500 | 3 | 1000 | 1370 | 1270 | 1080 | 5 | 6 | 45°/10° | 647 | 1012 |
| SLF-B07HB | 2500@500 | 3 | 1000 | 1520 | 1270 | 1080 | 5 | 6 | 45°/10° | 688 | 1078 |
