HINGED FORK
2500~5400 KGHinged Fork
Hinged forks can safely and efficiently dump forward the bulk cargo in the container, shovel all kinds of loose cargo with scraper pan, such as sand, coal, grain, fertilizer, soil and gravel, etc.
Load Capacity2500~5400 KG
Suitable Forklift2.5~7 TON
Attachment Weight315~560 KG
Dimensions / Opening1040~1845 MM

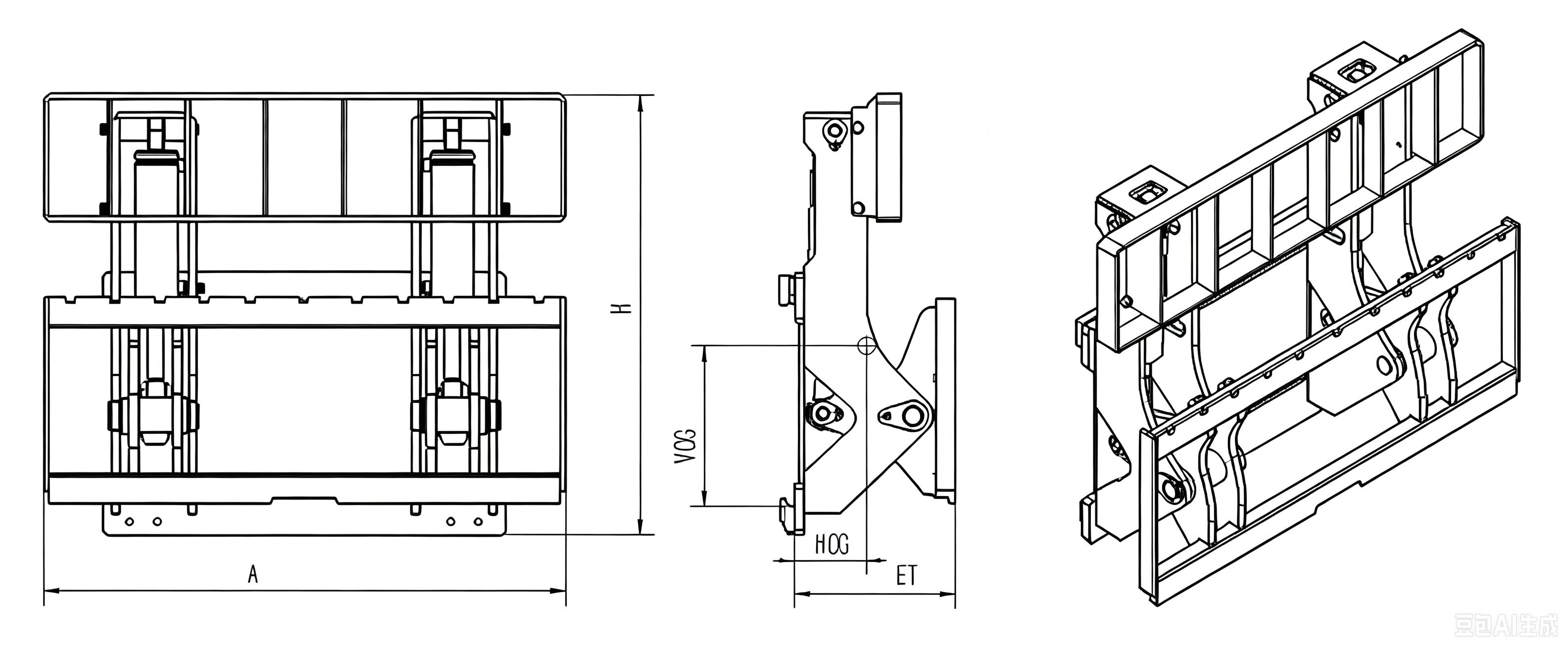

Technical Specifications
| Model | Capacity@Load Center (kg@mm) | Mounting Class | Carriage Width (mm) | Total Height (mm) | Tilt Forward/Backward | VCG (mm) | HCG (mm) | ET (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SLF-A01 | 2500@500 | 2 | 1040 | 868 | 45°/25° | 316 | 143 | 320 | 202 |
| SLF-A02 | 2500@500 | 2 | 1040 | 930 | 45°/35° | 346 | 148 | 356 | 241 |
| SLF-B01 | 3000@500 | 3 | 1060 | 941 | 45°/20° | 365 | 159 | 340 | 290 |
| SLF-B02 | 3000@500 | 3 | 1100 | 941 | 45°/20° | 364 | 161 | 340 | 295 |
| SLF-B03 | 3000@500 | 3 | 1060 | 984 | 45°/35° | 362 | 179 | 399 | 322 |
| SLF-B04 | 4000@500 | 3 | 1200 | 941 | 45°/12° | 374 | 175 | 365 | 393 |
| SLF-B05 | 4000@500 | 3 | 1380 | 941 | 45°/12° | 370 | 180 | 365 | 405 |
| SLF-B06 | 4000@500 | 3 | 1430 | 941 | 45°/12° | 369 | 181 | 365 | 407 |
| SLF-C01 | 5000@600 | 4 | 1535 | 1010 | 45°/18° | 391 | 202 | 402 | 586 |
| SLF-C02 | 5000@600 | 4 | 1710 | 1010 | 45°/18° | 388 | 208 | 402 | 605 |
| SLF-C03 | 5000@600 | 4 | 1845 | 1010 | 45°/18° | 385 | 212 | 402 | 620 |
