INVERTA PUSH
2000 KGINVERTA PUSH
INVERTA PUSH CAN HANDLE GOODS WITHOUT PALLET, IT CAN QUICKLY ROTATE THE GOODS AND SEPARATE THEM FROM THE PALLET.
Load Capacity2000 KG
Suitable Forklift2~4.5 TON
Attachment Weight1050~1250 KG
Dimensions / Opening1220 MM

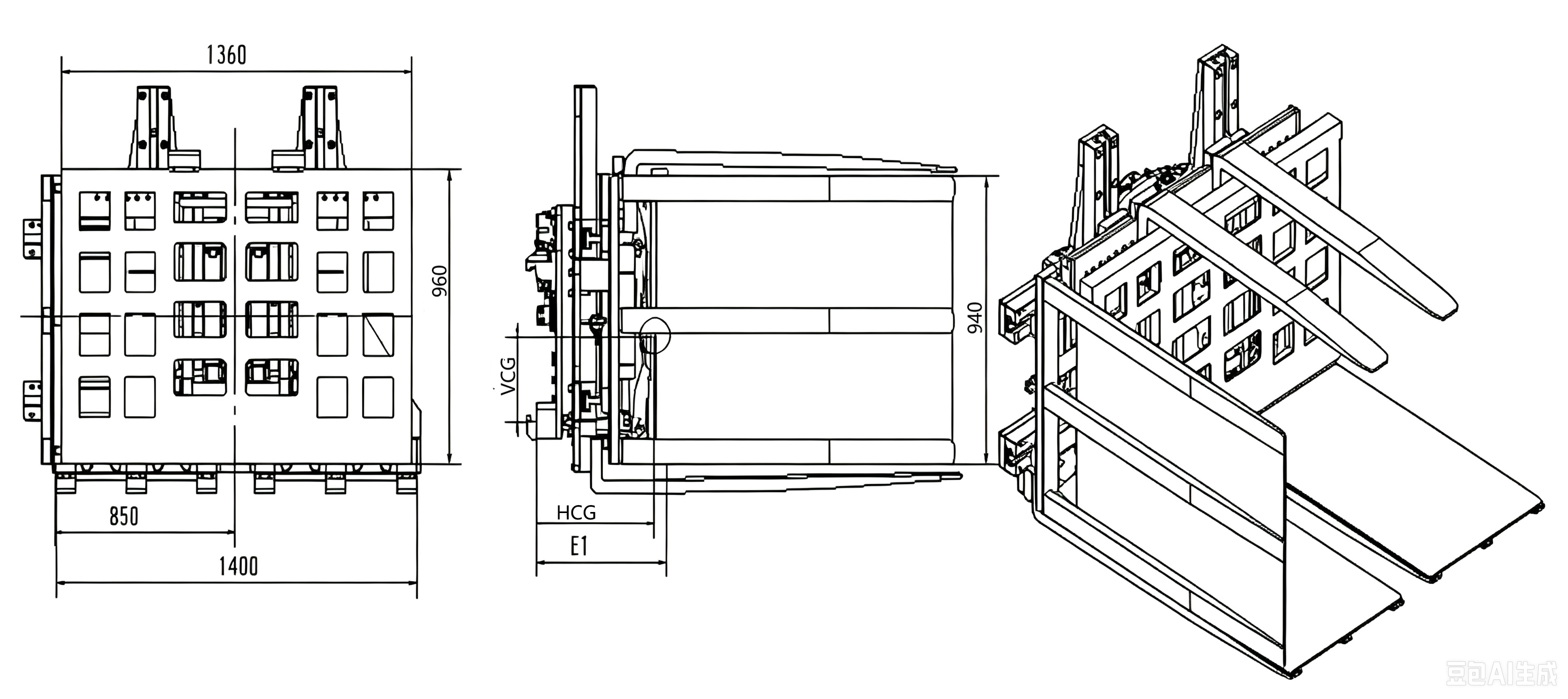

Technical Specifications
| Model | Capacity@Load Center (kg@mm) | Cargo Width x Height (mm) | Mounting Class | Panel Length x Width (mm) | Side-hugging Stroke (B) (mm) | Launch Itinerary (D) (mm) | Elevate Stroke (C) (mm) | VCG (mm) | HCG (mm) | ET (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLXT-B51D | 1600@500 | 1100x600 | 3 | 1050x550 | 500~650 | 1100 | 575~975 | 312 | 449 | 596 | 1185 |
| SLXT-B52D | 2000@500 | 1450x1050 | 3 | 1360x960 | 670~820 | 1200 | 1000~1680 | 277 | 456 | 495 | 1395 |
| SLXT-B53D | 2000@500 | 1580x1170 | 3 | 1360x960 | 700~850 | 1200 | 1020~1700 | 280 | 450 | 495 | 1440 |
| SLXT-B54D | 2000@500 | 1600x800 | 3 | 1500x700 | 760~910 | 1200 | 750~1280 | 299 | 484 | 594 | 1438 |
