FORK CLAMP

Fork Clamp (Rotator)

Fork clamp rotator combines clamping and rotating functions, can not only clamp goods, but also insert pellet cargo and rotate 360 degrees. Apply to tobacco, papermaking, chemical fiber, workshop, port and other industries.

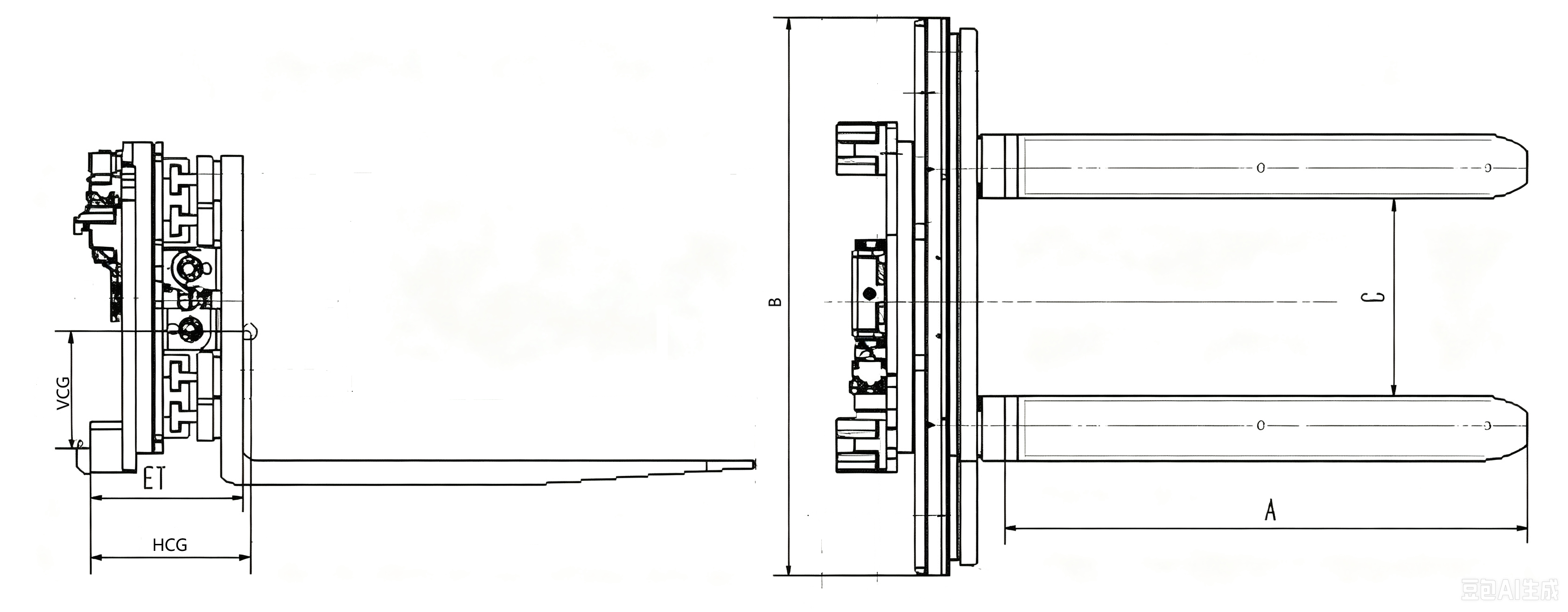

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Opening Range (mm)	Mounting Class	Fork Length (mm)	Frame Width (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (kg)
SLCJ-A01FRL	1600@600	410-1600	2	1070	940	291	212	282	568
SLCJ-A02FRL	1600@600	410-1600	2	1220	940	283	236	282	580
SLCJ-A03FRL	1600@600	75-1415	2	1220	1400	295	224	287	678
SLCJ-A04FRL	1600@600	460-1800	2	1200	1015	293	229	287	630
SLCJ-A05FRT	1600@600	410-1600	2	1220	1100	282	231	287	678
SLCJ-B01FRL	2200@600	465-1800	3	1070	1015	292	244	325	625
SLCJ-B02FRL	2200@600	465-1800	3	1220	1100	283	271	332	680
SLCJ-B03FRL	2200@600	340-1640	3	1220	1150	286	272	332	688
SLCJ-B04FRL	2500@600	465-1800	3	1220	1015	293	265	336	695
SLCJ-B05FRL	2700@600	465-1800	3	1220	1300	290	282	350	798
SLCJ-B06FRT	2300@600	310-1670	3	1200	1200	291	264	345	798
SLCJ-B07FRT	2500@600	465-1800	3	1220	1300	282	279	345	885
SLCJ-B08FRT	2700@600	465-1800	3	1220	1300	283	289	350	912
SLCJ-B09FRT	2700@600	465-1800	3	1830	1300	260	386	350	984
SLCJ-B10FRT	3200@600	340-1640	3	1280	1400	286	284	345	930
SLCJ-C01FRT	4000@600	450-1990	4	1220	1400	331	300	387	1237
SLCJ-C02FRT	4000@600	450-1980	4	1830	1400	333	378	393	1700
SLCJ-C03FRT	5000@600	450-1990	4	1220	1400	334	301	393	1338
