ROTATOR

Rotator

Rotator quickly dumps or inverts container cargo and rotates in 360 degrees. It widely used in food processing, automotive manufacturing, chemical processing, reeling operations, smelting and casting operations, and general manufacturing.

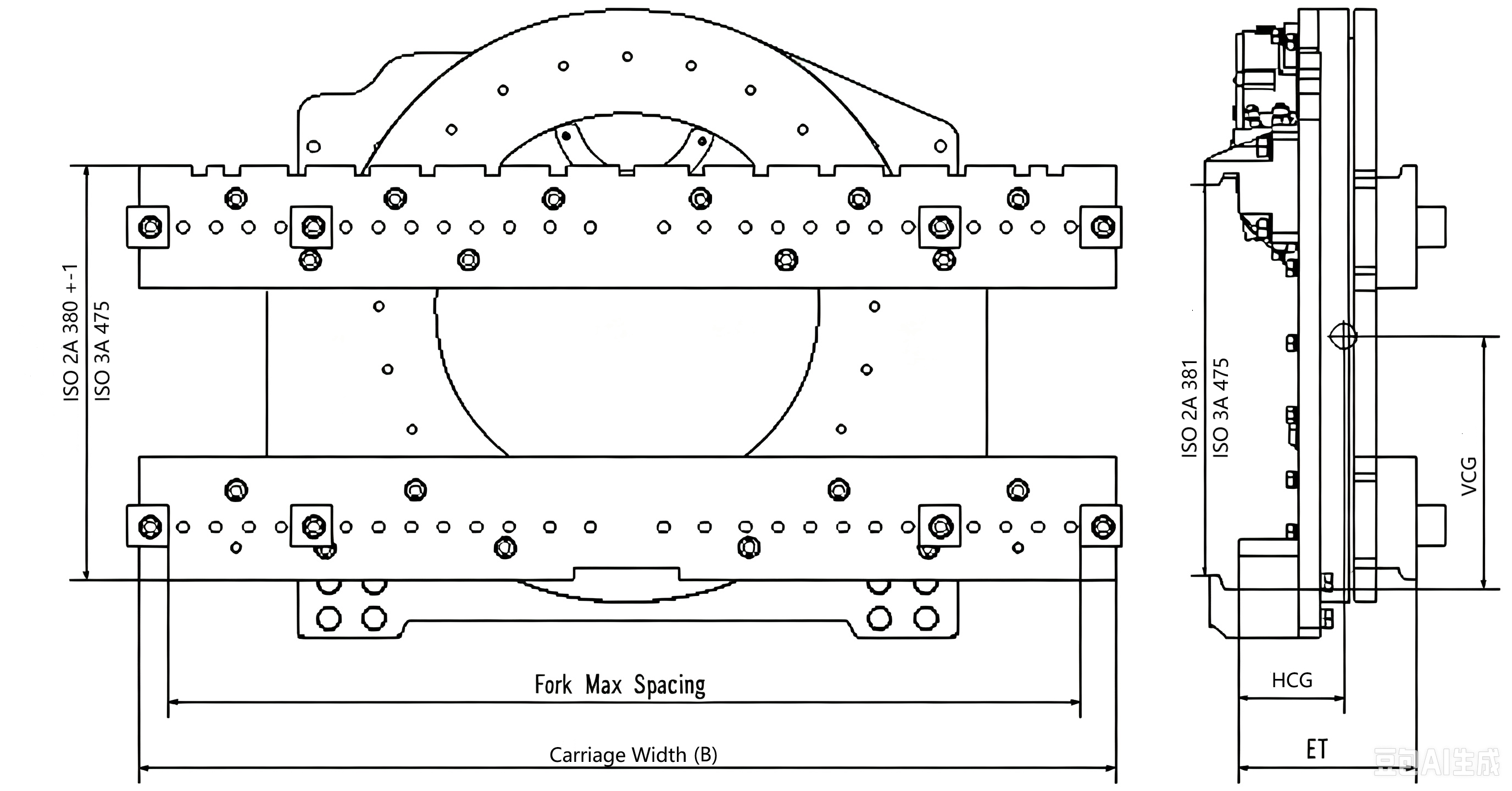

Technical Specifications

Model	Capacity@Load Center (kg@mm)	Mounting Class	Carriage Width (B)	Fork Max. Spacing (mm)	VCG (mm)	HCG (mm)	ET (mm)	Weight (kg)
SLX-JSA101	1600@500	2	920	810	272	57	131	175
SLX-JSA102	1600@500	2	970	860	272	57	131	178
SLX-JSA103	1600@500	2	1040	930	271	58	131	180
SLX-JkA201	2500@500	2	1040	920	318	78	169	291
SLX-JKA202	2500@500	2	1100	980	316	79	169	295
SLX-JSA203	2500@500	2	1040	920	318	78	169	330
SLX-JSA204	2500@500	2	1100	980	317	79	169	333
SLX-JKB301	3500@500	3	1100	980	316	110	204	308
SLX-JKB302	3500@500	3	1200	980	315	111	204	313
SLX-JSB303	3500@500	3	1100	980	315	111	204	345
SLX-JSB304	3500@500	3	1200	980	314	112	204	350
SLX-LKB305	4500@500	3	1200	1120	309	130	219	425
SLX-LKB306	4500@500	3	1380	1300	307	133	219	445
SLX-LSB307	4500@500	3	1200	1120	307	129	219	470
SLX-LSB308	4500@500	3	1380	1300	306	132	219	490
SLX-LKC401	5400@600	4	1380	1305	406	133	226	556
SLX-LKC402	5400@600	4	1535	1460	405	135	226	572
SLX-LKC403	5400@600	4	1485	1320	405	135	226	555
SLX-LKC404	5400@600	4	1535	1370	404	135	226	570
SLX-LSC405	5400@600	4	1485	1380	400	133	226	630
SLX-LSC406	5400@600	4	1535	1430	399	134	226	644
SLX-LSD501	9990@760	5/4	1600	1400	555	158	302	1745
SLX-LSD505	9990@760	5/5	1700	1500	568	238	397	1940
