PUSH PULL
2000 KGPush Pull
Push/pulls handle skateboard cargo, realize handling and stacking cargo efficiently with low maintenance cost. Suitable for bagged products (cement, fertilizer, grain, seed, sugar etc.). Cased goods (boxed/canned/frozen foods, juices, paper products, appliances, cosmetics, etc.). Glass (beer, juice, liquor wine, etc.).
Load Capacity2000 KG
Suitable Forklift2~3.5 TON
Attachment Weight372 KG
Dimensions / Opening1250 MM

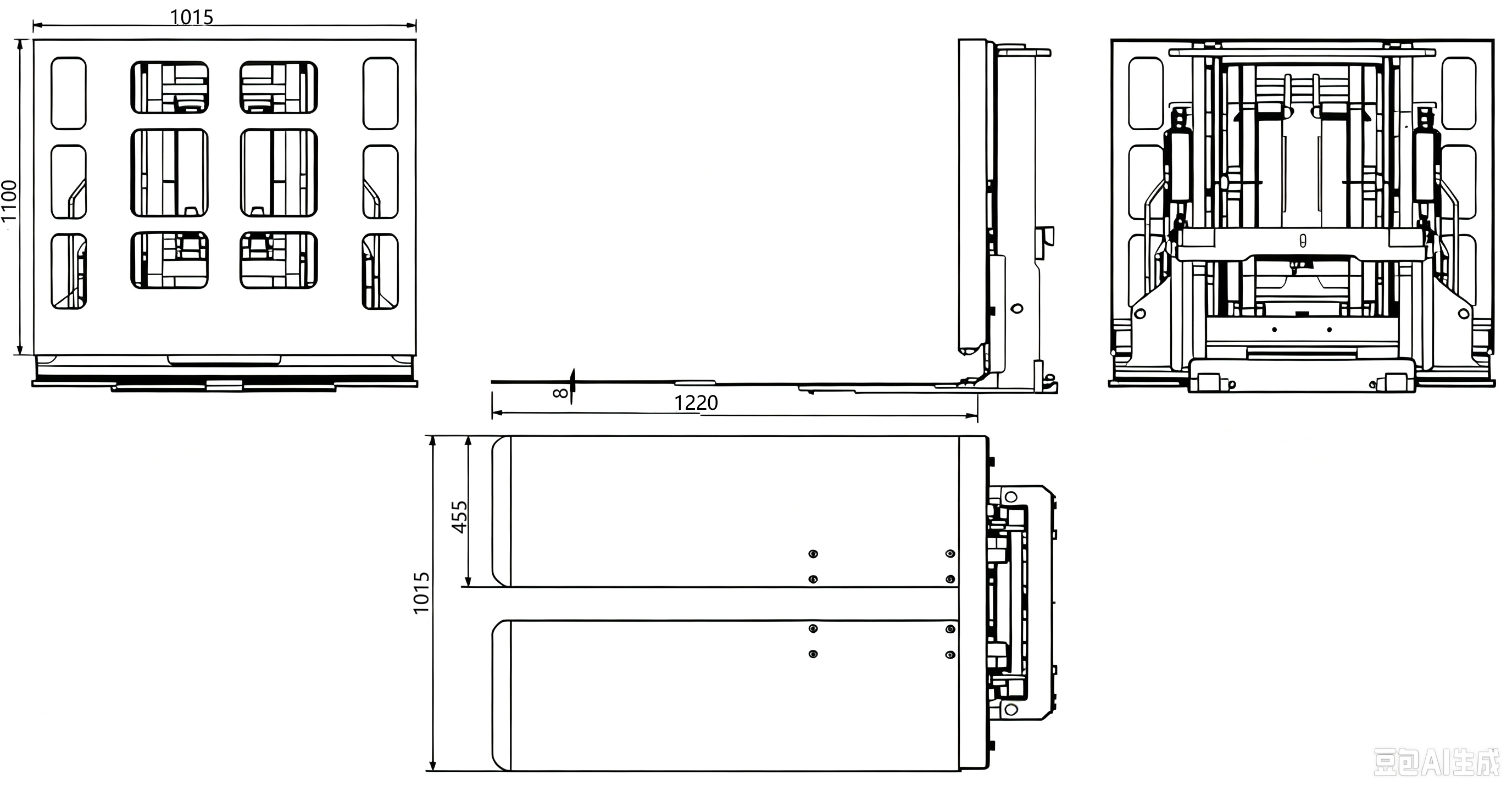

Technical Specifications
| Model | Capacity@Load Center (kg@mm) | Mounting Class | Outside Platen Spacing (mm) | Platen Size (mm) | VCG (mm) | HCG (mm) | ET (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SLP-A201 | 1600@500 | 2 | 1015/1170 | 455*1220 | 296 | 262 | 180 | 370 |
| SLP-B301 | 2000@600 | 3 | 1015/1170 | 455*1220 | 296 | 262 | 180 | 372 |
| SLP-B302 | 2000@600 | 3 | 1015/1170 | 460*1250 | 338 | 245 | 211 | 452 |
